ECO50-S – Wide Reach. Accurate Results.
The ECO50-S is a high-capacity, tow-behind top dresser and compost spreader that delivers wider coverage and greater precision while keeping the same simple, low-maintenance design as the ECO50. Dual spinners create a broad, even spread pattern for large turf areas, and the adjustable gate ensures precise flow control.
Perfect for all sand grades, screened compost, and a wide range of lawn care and turf-care materials. Designed to tow behind ride-on mowers like Walker Mowers, it also connects easily to ATVs, tractors, and utility vehicles. A reliable choice for anyone seeking professional-grade top dressing results with minimal upkeep.
See further below for additional information & technical specifications.
- Easy process
- Time saving
- Grow your business
|
Top Dresser - ECO50S
Technical specification
| Gate |
On⁄off gate system
|
|
Included
|

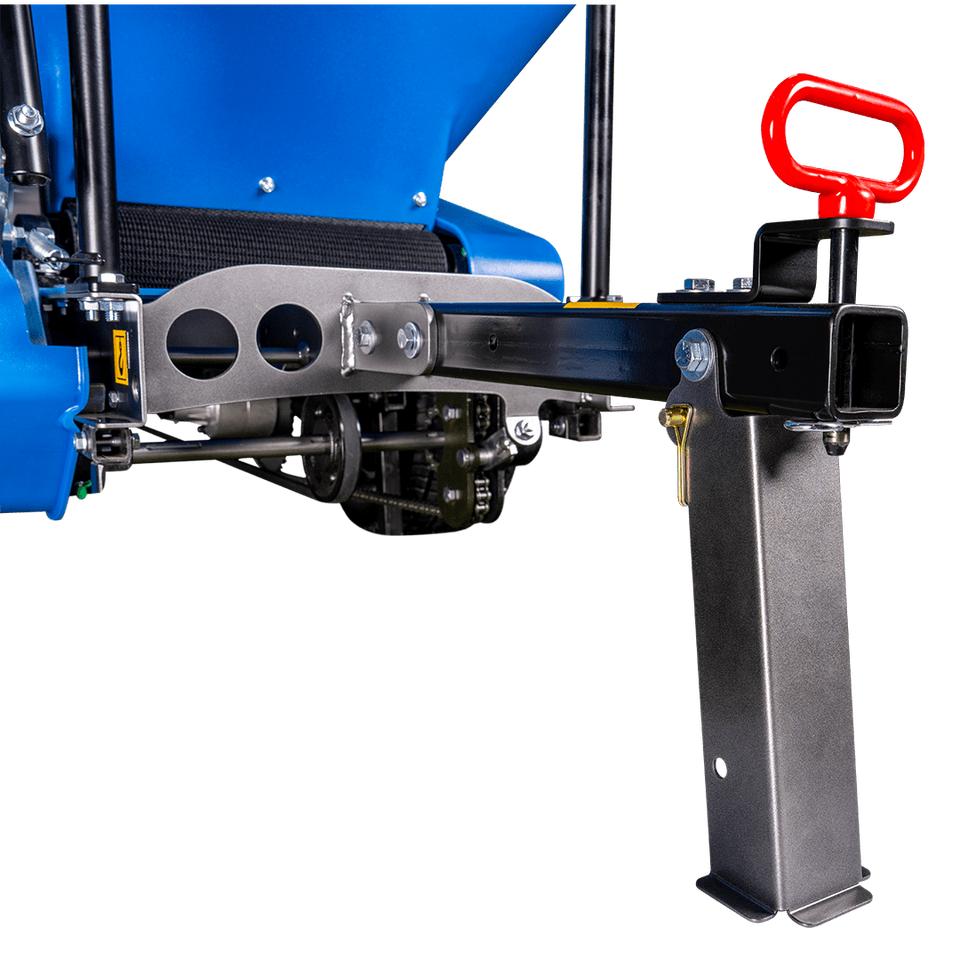

Gate stopper, Retractable leg for storage, Four tie-down points, Additional weight deflector
|
|

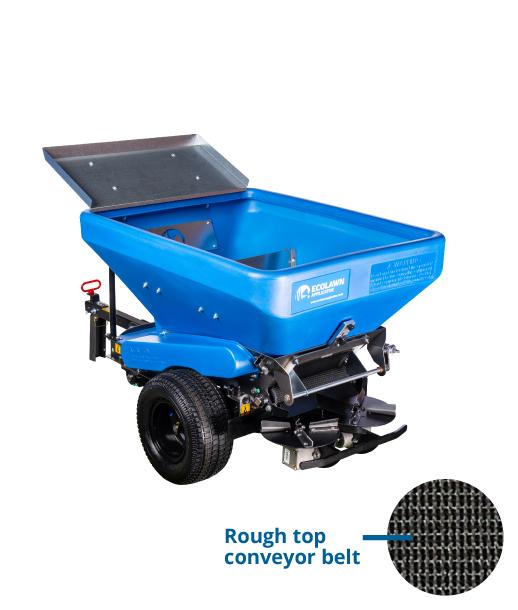

Conveyor belt
|
Rough top
|
|
Application Speed
|
9 ft3/min – 540 ft3/h
(0.26M³/min – 15.29 M³/h)
|
|
Application Width
|
4 to 18 ft (1.22 to 5.49 M)
|
|
Application Thickness
|
Up to 1/4 in. (6.35 mm)
|
|
Materials
|
Suitable for all grades of sand, calcined clay, crumb rubber, light soil mixes, lime, most pelletized products,
pulverized soils, screened compost, screened loam, and unlimited custom blends
|
| Hopper Capacity
|
11.5 ft3 (326 L)
|
| Broadcasting Drive & Mechanism
|
Gearbox-driven system with dual disks / spinners
|
| Ground speed
|
Up to 5 mph (8 km/h)
|
| Weight Distribution Design
|
Two-wheel design
|
|
Empty Weight
|
270 lbs (122.47 kg)
|
|
Dimension (L/W/H)
|
78 x 34 x 40 in.
(1981 × 864 × 1016 mm)
|
|
Warranty
|
One (1) year commercial use on parts and labor
|
|
Certification
|
CE Certified
|
|
