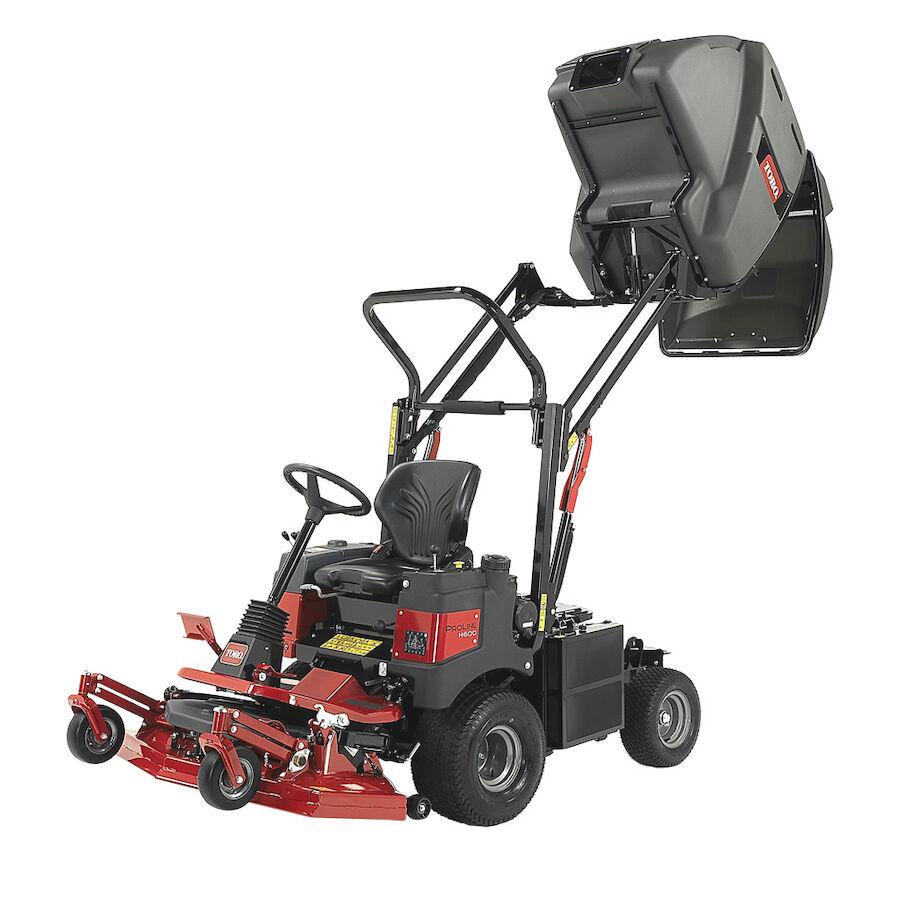

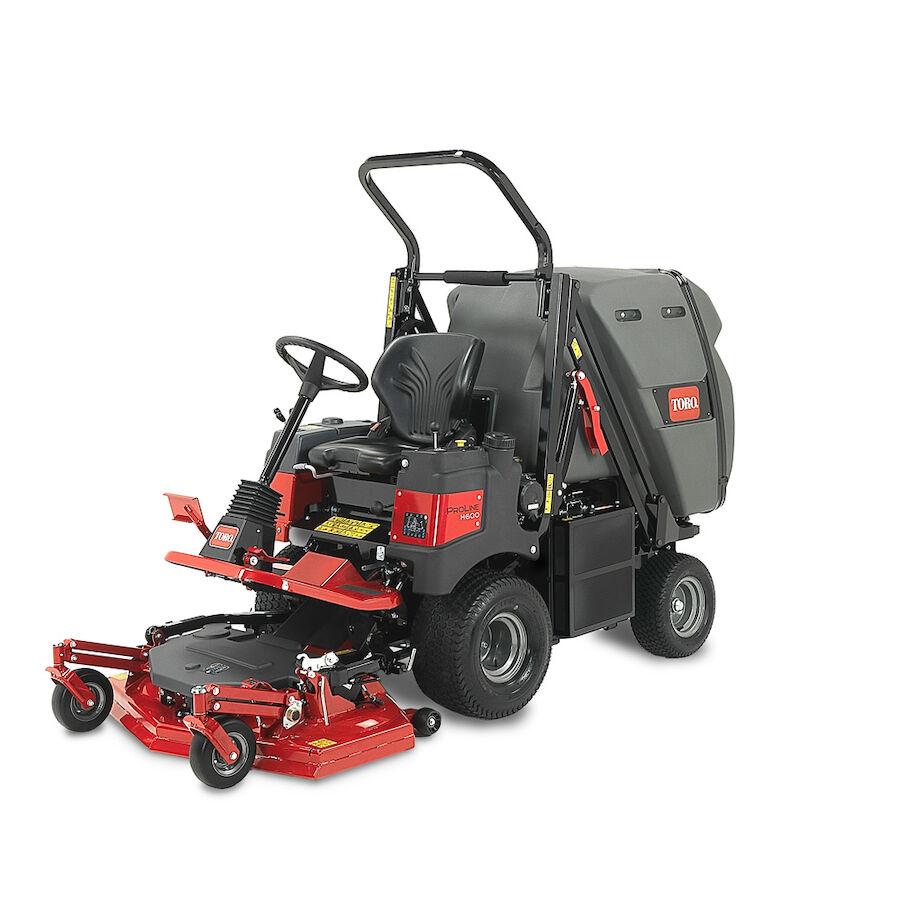

ProLine H600 Central Collect Mower 1.13 m (44.5") Cutting Width Innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity. Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers. With a huge 700 L hopper, you can get the job done efficiently – mow, collect and dispose up to 7,500 m2 per hour.

ProLine H600 Central Collect   Technical specification Controls                                                              Tilt-adjustable steering column, parking brake, engine throttle lever, electronic height-of-cut adjustment (operated from the operator seat), hydraulic controls for deck lift/lower, hopper lift/lower and hopper tilt, ignition key switch, PTO switch, engine hour meter, forward/reverse pedal, differential lock pedal, battery charge indicator, oil pressure warning indicator, glow plug indicator, engine temperature warning indicator, fuel gauge Fuel Capacity 22 Litres (5.5 US Gal) Fuel Type Diesel Height 1,930 mm (76") • 1,510 mm (59.4") hopper Height of Cut Range              25 mm – 90 mm (1" – 3.5"), adjustable from operator seat Hydraulic Fluid Capacity 6.7 L (1.68 Gal) Length 2,710 mm (106.7") Power Train (Engine Description) Kubota D722 3-Cylinder Diesel, Stage V / Tier IV PTO Clutch Electromagnetic with integral blade brake Seat Grammer with fore/aft and backrest adjustment Traction Drive 2WD Turning Circle (Diameter) 640 mm (25.2") Weight 635 kg (1,400 lbs)
